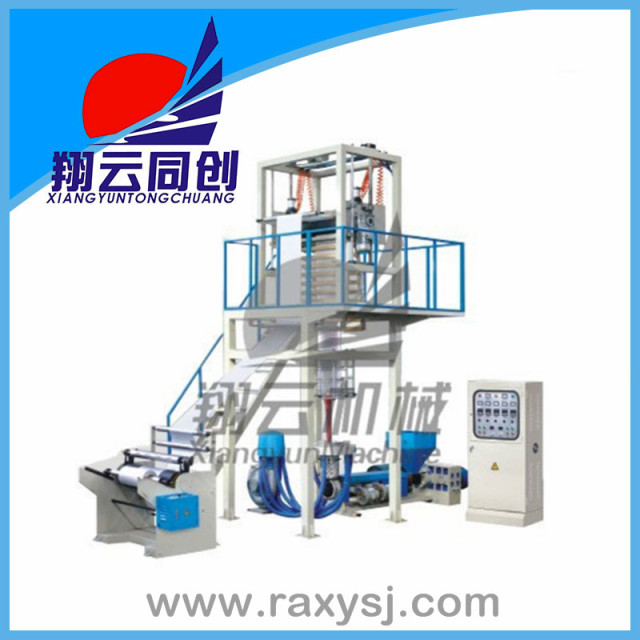

XY-A series high and low pressure film blowing machine

XY-A series high and low pressure film blowing machine

Purpose: The extruder, barrel and screw of this unit are made of high-quality alloy steel, nitrided and precision-processed, with excellent hardness and corrosion resistance. The specially designed screw has high output and good plasticization. It is suitable for blowing plastic films such as low-density polyethylene (LDPE), high-density polyethylene (HDPE), linear low-density polyethylene (LLDPE), etc., and is widely used in civil and industrial packaging such as food, clothing, garbage bags, vest bags, etc.
Online Inquiry Contact Us

Product Description

Optional configuration:

1) Automatic suction machine

2) Air compressor

3) Special specification die head

4) Rotating die head device

5) Dual-position winding machine



Main technical parameters

Model

XY-A50

XY-A55

XY-A60

XY-A65

Materials used

HDPE, LDPE, LLDPE

Maximum film folding diameter (mm)

600

800

1000

1200

Film thickness (mm)

0.008-0.15mm

Maximum extrusion volume

35kg/h

50kg/h

65kg/h

80kg/h

Extrusion unit

gearbox

133

146

173

180

Screw diameter

φ50

φ55

φ60

φ65

Screw aspect ratio

28:1/30:1

28:1/30:1

28:1/30:1

28:1/30:1

Screw material

38 CRMOALA

Barrel material

38 CRMOALA

Main motor power

11kw

15kw

18.5kw

18.5kw

Die head

Die mouth

φ50, 100

φ100,150

φ150,200

φ200,250

wind ring

780mm

780mm

780mm

780mm

cooling fan

1.1kw

1.5kw

1.5kw

2kw

center stabilizing bar

1







Traction part

Traction roller width

φ150*700

φ150*900

φ150*1100

φ150*1300

Embossing roller width

550mm

850mm

1100mm

1300mm

Lead motor power

1.5kw

1.5kw

1.5kw

1.5kw

Retrieval speed

10-60 m/min

10-60 m/min

10-60 m/min

10-60 m/min

Rewinding part

Winding method

Friction single winder

Rewinding wheel width

700mm

900mm

1100mm

1300mm

Coiling power

6N

10N

10N

10N

power supply

380V, 50HZ, 3PHASE

Covered area

5*2.2*4.6m

5*2.4**4.8m

6.5*2.3*4.9m

6.5*2.5*5.6m
