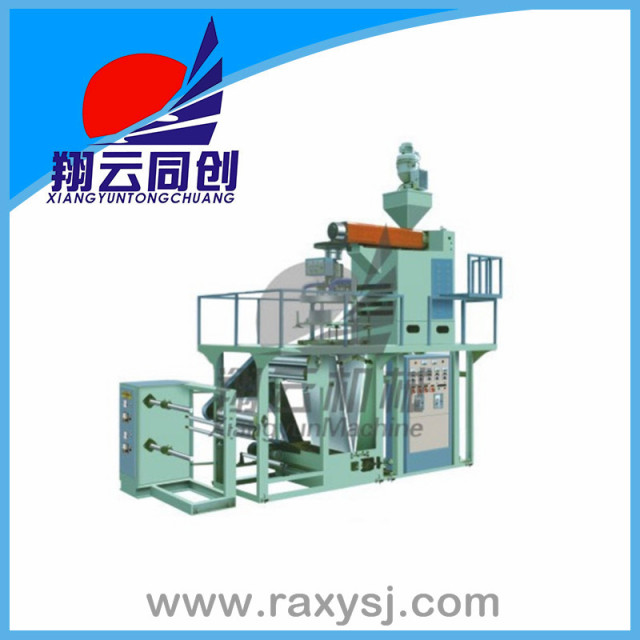

PP Film Blowing Machine

1. The screw barrel is made of 38CRMOALA alloy steel, which is nitrided and precision machined to have the best hardness and corrosion resistance. 2. The die head is plated with hard chrome, and its structure is a roller mandrel type, which ensures uniform and smooth material discharging; the air-cooling device has a labyrinth-type structure, with uniform air volume, automatic temperature control, and automatic heating.

Online Inquiry Contact Us

Product Description

Optional configuration:

1) Automatic material suction

2) Surface treatment

3) Rotating die head

4) Air compressor

Main technical parameters:

Model	XYF-55	XYF-60	XYF-70
Applicable materials	PP
Film width	100-550mm	100-600mm	300-800mm
Film thickness	0.03-0.11mm	0.03-0.11mm	0.03-0.11mm
Yield	35kg/h	40kg/h	60kg/h
Screw diameter	Φ50	Φ60	Φ70
Screw aspect ratio	28:1	28:1	28:1
Barrel cooling	370w*2	370w*2	370w*3
Drive motor	11kw	15kw	18.5kw
Die mouth	Φ150	Φ250	Φ300
Blower	1.5kw	1.5kw	2.2kw
Pressure wheel	Φ165*600mm	Φ165*650mm	Φ165*850mm
Lead motor	1.5kw	2.2kw	2.2kw
cause speed	5-60m/min	5-60m/min	5-60m/min
Winding speed	5-60m/min	5-60m/min	5-60m/min
Winding motor	5N.m	5N.m	5N.m
Overall dimensions	4.51.13.0m	4.81.13.3m	5.01.53.8m
